Building a DIY 2m Dipole Antenna: A Simple and Effective Project

If you're into amateur radio or scanning and want a simple, effective antenna for the 2-meter band (144–148 MHz), a DIY dipole antenna is a great project. Inspired by the design from Everyday Ready, this dipole is easy to build, requires minimal materials, and delivers solid performance for transmitting and receiving.

---

Why Build a 2m Dipole?

The 2m band is popular among hams for repeaters, simplex communication, and emergency use. A dipole antenna is a balanced, efficient, and easy-to-make option for improving signal strength compared to stock rubber duck antennas or basic whips.

This design is:
✅ Cheap & Simple – Uses just wire, PVC, and basic tools.
✅ Effective – Performs better than handheld antennas.
✅ Customizable – Can be used indoors, outdoors, or mounted on a mast.

---

Materials Needed

• Two 19-inch (48 cm) pieces of wire (copper or aluminum)
• PVC pipe or wooden dowel (for mounting)
• SO-239 chassis mount or BNC/SMA connector (for coax connection)
• 50-ohm coaxial cable (RG-58 or similar, with matching connector)
• Zip ties or small bolts/nuts (to attach elements to mount)
• Drill, soldering iron (optional), wire cutters

---

Building the Antenna

Step 1: Cut the Elements

Each leg of the dipole should be 19 inches (48 cm) long for a center frequency around 146 MHz. If you need to adjust for lower or higher frequencies, use this formula:

📏 Element length (in inches) = 468 ÷ Frequency (MHz) ÷ 2

For 146 MHz:
➡ 468 ÷ 146 ÷ 2 ≈ 19 inches

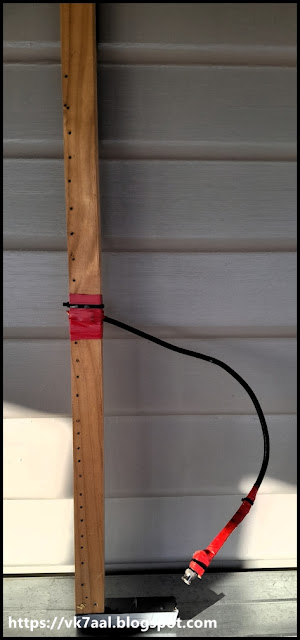

Step 2: Attach the Elements

• Drill two small holes in a PVC pipe or wooden dowel about ½ inch apart.
• Attach each wire element to the mount using zip ties, bolts, or epoxy.
• If using a SO-239 connector, solder one wire to the center pin and the other to the ground lugs.

Step 3: Connect the Coax

• If using an SO-239 connector, attach a PL-259 coaxial plug to your feedline.
• If going directly to BNC/SMA, solder or crimp as needed.
• Ensure good electrical connections to avoid signal loss.

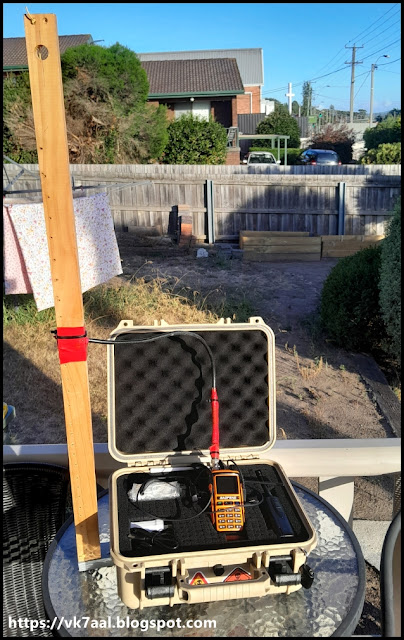

Step 4: Mount & Test

• Keep the dipole vertical for repeater/simplex operation.
• Mount it as high as possible for better range.
• Use an SWR meter or antenna analyser to check tuning.

---

Results & Improvements

✅ Clearer signals on repeaters and simplex channels.
✅ Better reception compared to handheld stock antennas.

Want to take it further? Try:

• Using thicker elements (copper tubing) for better bandwidth.
• Adding a ground plane for stability.
• Experimenting with portable vs. fixed setups.

---

Final Thoughts

This DIY 2m dipole is an easy, rewarding project for hams and radio enthusiasts. It’s cost-effective, customizable, and a great way to improve your signal without breaking the bank.

Have you built one? Share your results in the comments! 🚀📡
